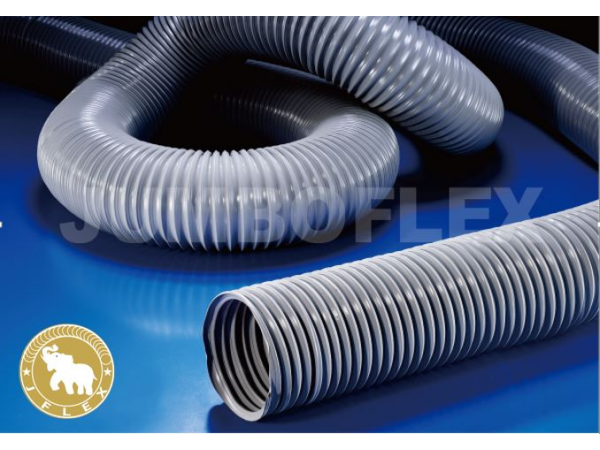

J 20-7 PVC OIL RESISTANT HOSE

Detalles del producto


Applications:
  • for oil and vapor recycle
  • for gas, dust and fibre collection in oil-resistant environment
  • for air conditioning and ventilation
Material:
  • wall: high-grade soft PVC
  • spiral: spring steel wire
Standard Color:
  • grey
Properties:
  • good resistance to alkalis, acids and chemicals
  • capable of electrostatic discharge by grounding the spiral
  • good oil resistant
  • flame-retardant according to UL94-HB
  • small bending radius
  • material complied with RoHS
Temperature Range:
  • -10 °C approx. to +70 °C approx.
Specification:
  • ø 102 to ø 203 mm

Delivery Variants:
Customer-specific product marking,further colors,diameters and lengths available on request.




    1. I.D.mm
    2. O.D.mm
    3. Weightkg/m
    4. Stock Lengthsm
    1. 102
    2. 109
    3. 0.66
    4. 15
    1. 127
    2. 134
    3. 0.82
    4. 15
    1. 152
    2. 162
    3. 0.94
    4. 15
    1. 203
    2. 212
    3. 1.29
    4. 15
    1. I.D.mm
    2. O.D.mm
    3. Weightkg/m
    4. Stock Lengthsm
      • 102
      • 109
      • 0.66
      • 15
      • 127
      • 134
      • 0.82
      • 15
      • 152
      • 162
      • 0.94
      • 15
      • 203
      • 212
      • 1.29
      • 15
